LeoGuar · Mid-drive electric mountain bike

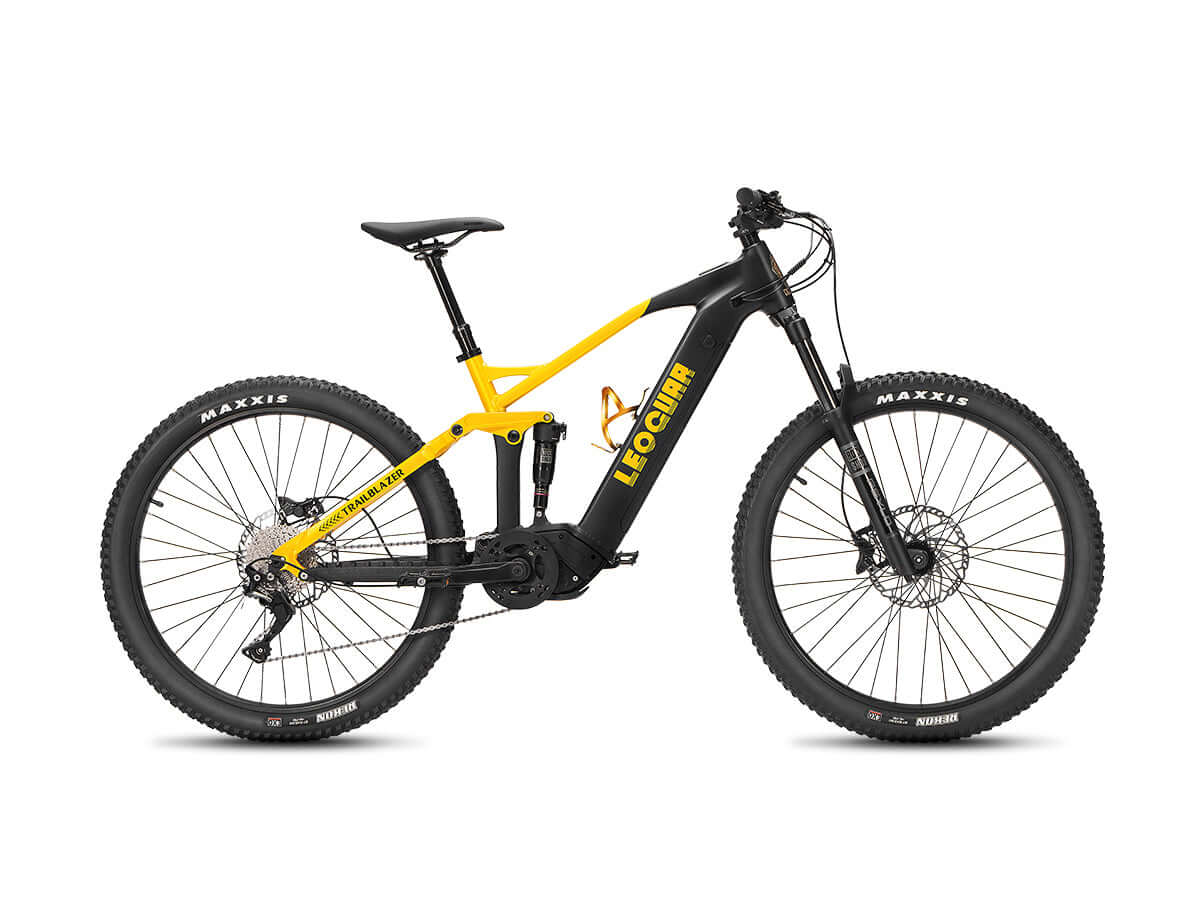

Trailblazer
Full-suspension mid-drive trail bike with a 100 Nm motor and a claimed 100-mile range.
$2,899 MSRP (set by LeoGuar)
You'll go to LeoGuar's site to see full details, color/frame options, and to order. This is a sponsored affiliate link — ElectricBikes.com may earn a commission at no extra cost to you.
- 500W mid-drive motor (750W peak) with 100 Nm torque
- Full suspension — RockShox 140mm fork + RockShox Deluxe Select rear shock
- Shimano Deore 10-speed with 4-piston hydraulic disc brakes
- 720Wh UL 2271-certified battery with dual-lock security
Partner showcase — not an ElectricBikes.com review. We have not put the Trailblazer through our independent test process, so it carries no ElectricBikes.com score. The specs and price below are LeoGuar's own published claims, accurate when last checked — always confirm on the brand's site. The link above is a sponsored affiliate link.
Specifications
As published by LeoGuar. Not independently verified by ElectricBikes.com.
- Motor
- Mid-drive MAGIC T1, 48V 500W (750W peak), 100 Nm
- Battery
- 48V 15Ah 720Wh, UL 2271 certified
- Range
- Up to 100 miles (brand estimate)
- Top speed
- 28 MPH (Class 3)
- Sensor
- Torque sensor
- Drivetrain
- Shimano Deore 10-speed (11–36T)
- Brakes
- Shimano BR-MT420 4-piston hydraulic disc (203mm front / 180mm rear)
- Suspension
- RockShox 140mm fork + RockShox Deluxe Select rear shock
- Tires
- Maxxis Rekon 27.5" × 2.6"
- Frame
- 6061 T4/T6 aluminum alloy
- Display
- Top-tube embedded color display, anti-theft
- Bike weight
- 55 lbs (incl. battery)
- Payload
- 275 lbs
- Charger
- 54.6V 3A smart charger (100–240V)
- Warranty
- 2-year (brand)
